Studio Series: U4-II

U4-II

APPLICATIONS

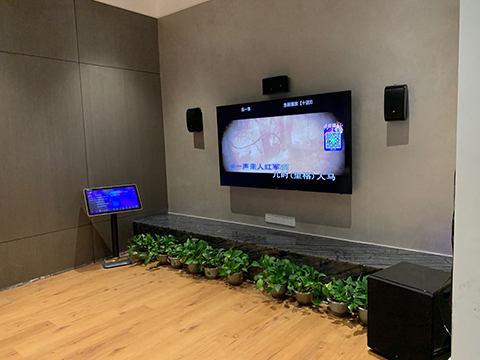

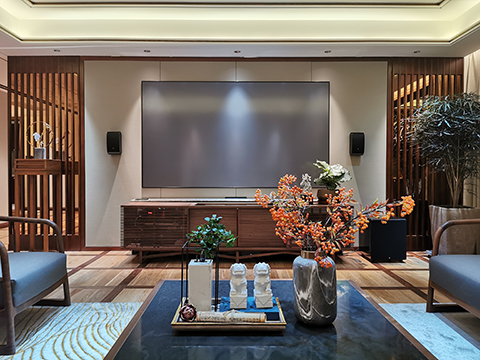

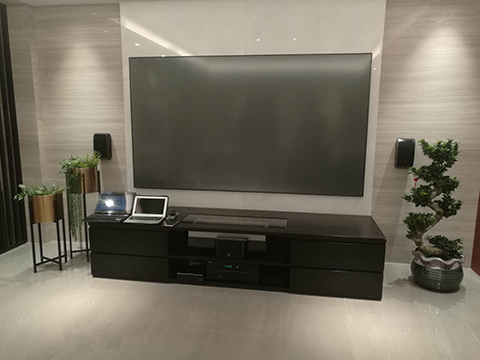

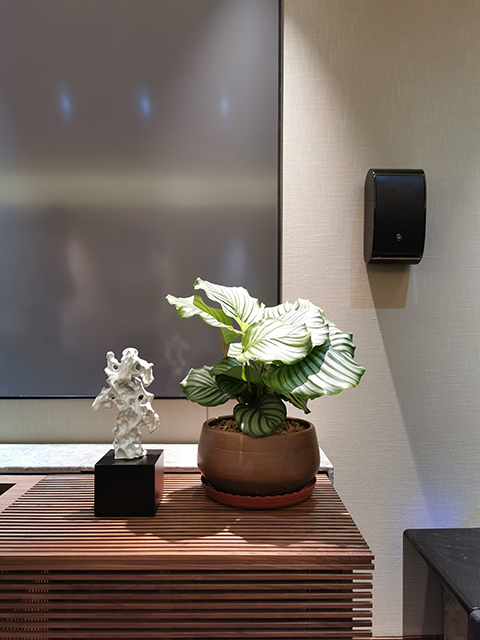

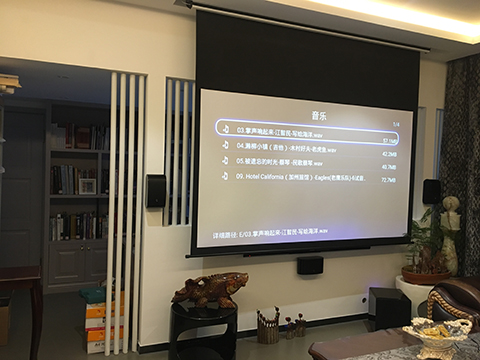

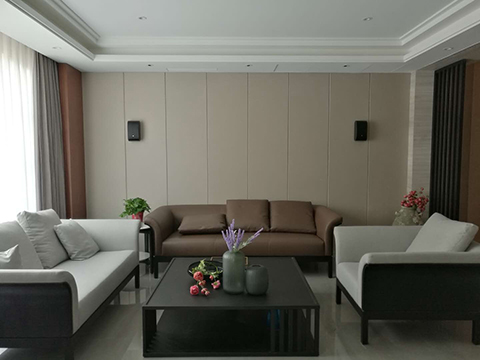

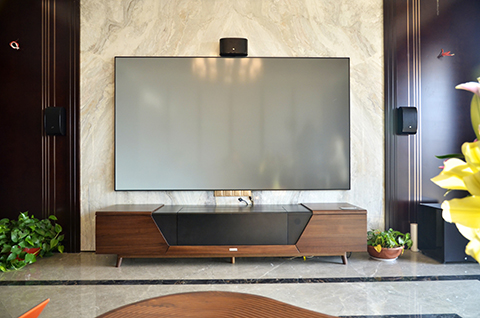

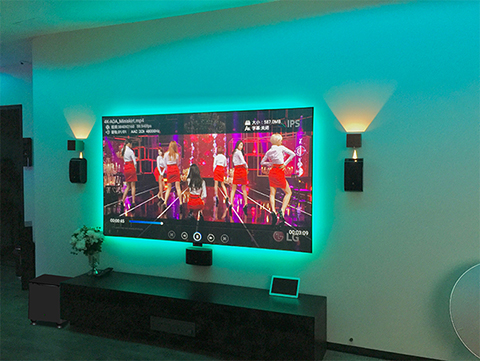

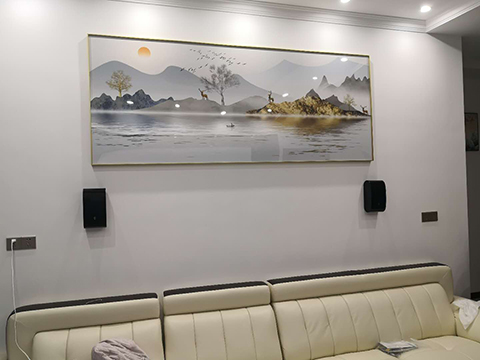

             ● Home theater

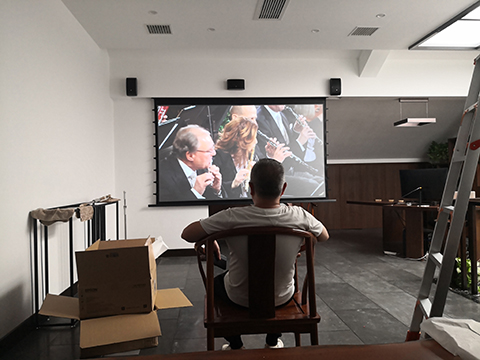

             ● Meeting room,Cinemas
TECHNICAL SPECIFICATIONS
Drivers 1×4" LF driver
1×1" HF compression driver

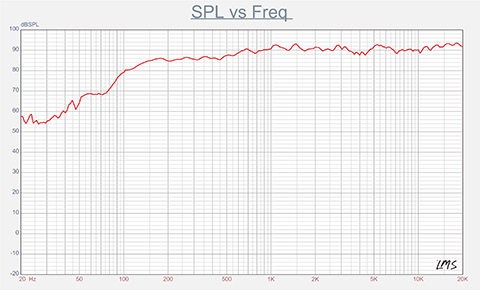

Frequency Response 80Hz-20KHz
Dispersion 80˚ horizontal, 80˚ vertical
Sensitivity 89dB/W/m
Max SensitivitySPL) 102dB continuous, 108dB peak
Nominal lmpedance 8 ohms
Rated Power 80W AES,160W peak
Crossover 80 Hz
Finishing High end piano coating (color can be customized)
Fittings TA4х30mm D=8 screw 2PCS, wall plug 2PCS
DimensionsW×H×D) 270mm×142mm×110mm
Weight 3Kg
