IW4Pro
2.75 - inch high - performance speaker + two passive bass - vibration films;
Small volume, 200W high power;
Using the guided wave structure, to change the direction of the sound;
Fully sealed body, astonished music enjoyment;
All materials meet ROHS requirement;
C1 custom installation;
Bring more convenient and extreme installation experience for home theater, background music and professional conference system.

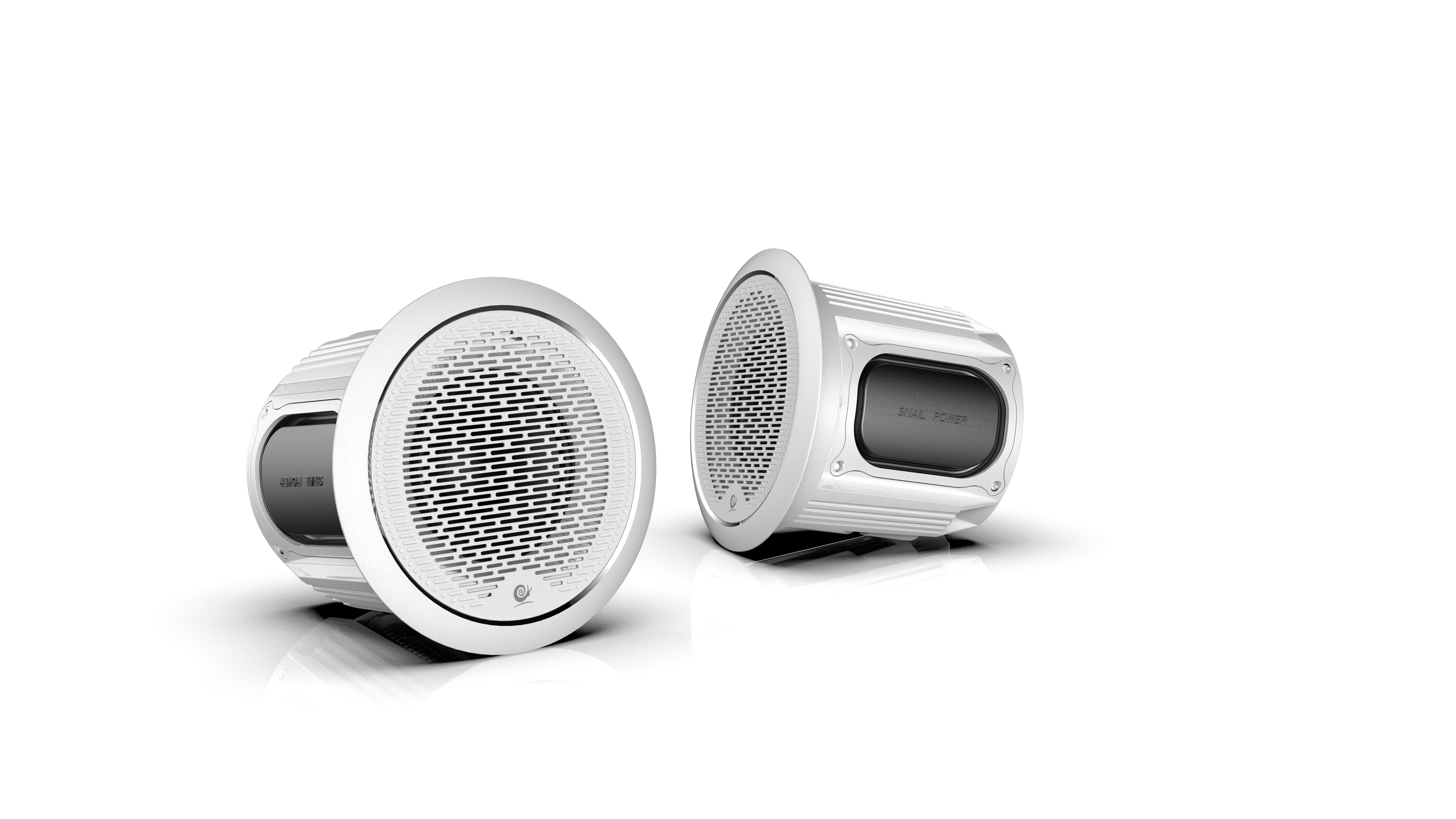

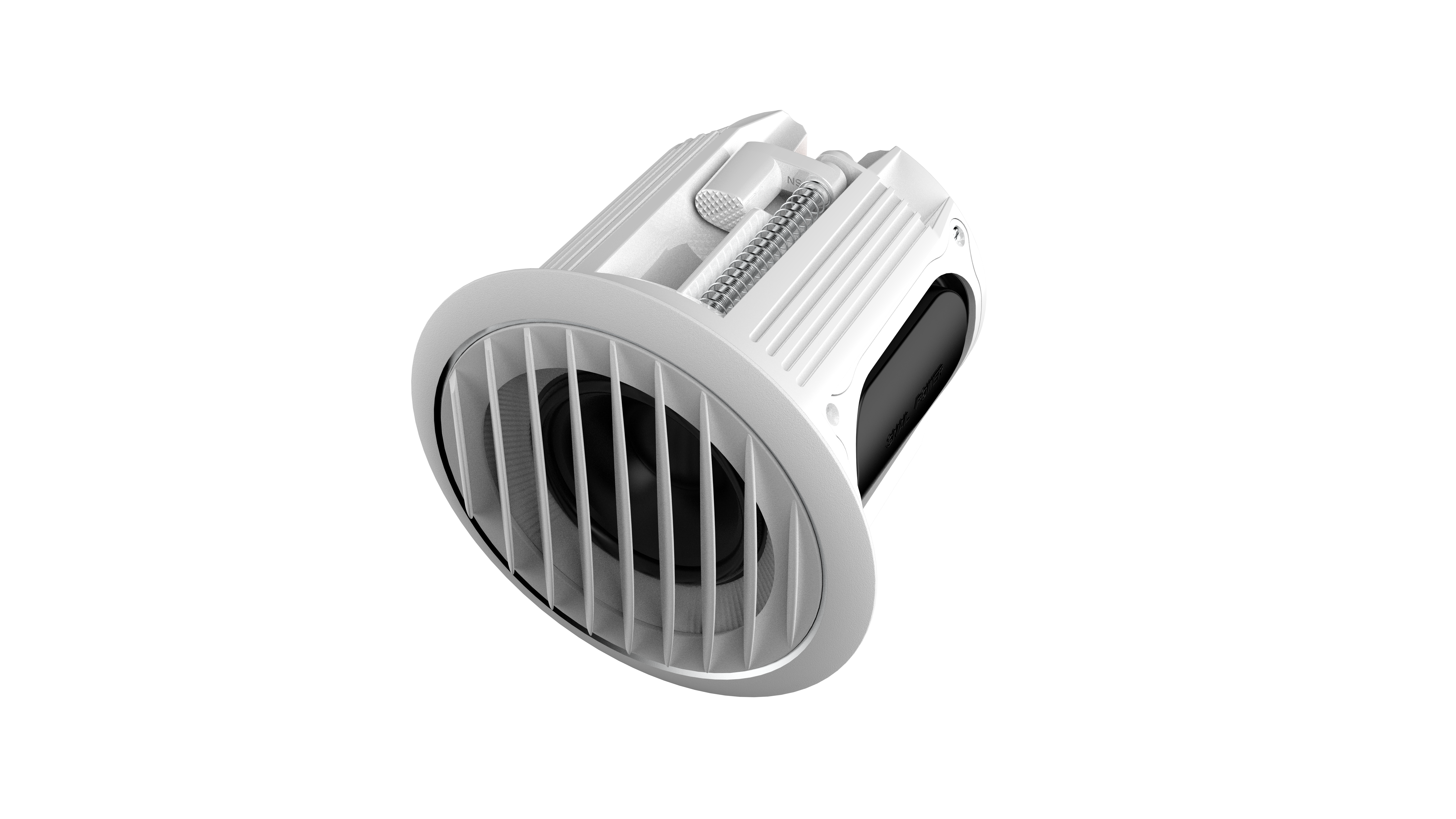

Snail Series IW4Pro: Newest Compact Flagship Stealthy Speaker
As the Snail Series’ compact flagship—and a bestseller—the IW4 redefines embedded audio:
It features an 11cm installation cutout and 110dB max SPL, embodying Snail Audio’s bold break from traditional large speakers via guided wave stealth technology.
Thanks to high-power radiator technology, it achieves an effective frequency response down to below 50Hz, delivering remarkably powerful low-end performance. With 200W power output, it also maintains a maximum continuous SPL of 110dB, balancing compact size with impressive acoustic strength. maximum continuous output reaches up to 110dB
Technical parameters
|
Parameter |
Details |
|
Drive Units |
1X2.75" Driver |
|
Frequency Response |
50Hz - 20KHz (- 10dB) |
|
Power Input |
200W |
|
Sensitivity |
89dB/W/m |
|
Avg. Max Output @1m |
110dB |
|
Input Impedance |
8Ω |
|
Inputs |
Press-type terminal block |
|
Dimensions |
Φ120x104mm |
|
Net weight |
0.8Kg (single) |
