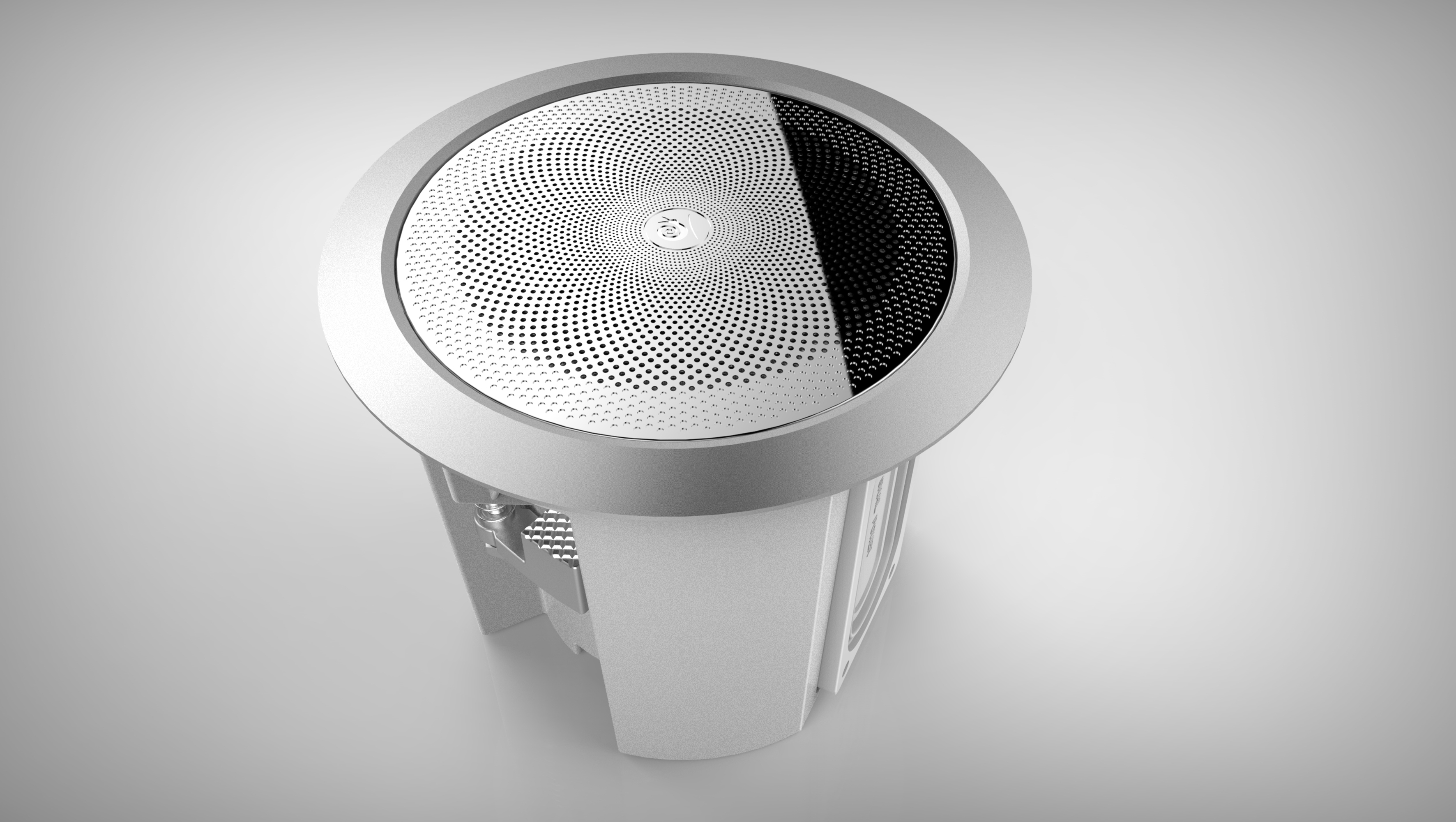

Snail Series IW4: Compact Flagship Stealthy Speaker

As the Snail Series’ compact flagship—and a bestseller—the IW4 redefines embedded audio:

It features an 11cm installation cutout and 110dB max SPL, embodying Snail Audio’s bold break from traditional large speakers via guided wave stealth technology.

Thanks to high-power radiator technology, it achieves an effective frequency response down to below 50Hz, delivering remarkably powerful low-end performance. With 200W power output, it also maintains a maximum continuous SPL of 110dB, balancing compact size with impressive acoustic strength. maximum continuous output reaches up to 110dB



Technical parameters

Parameter

Details

Drive Units

1X2.75" Driver

Frequency Response

50Hz - 20KHz (- 10dB)

Power Input

200W

Sensitivity

89dB/W/m

Avg. Max Output @1m

110dB

Input Impedance

8Ω

Inputs

 Press-type terminal block

Dimensions

Φ125x103mm

Net weight

0.83Kg (single)



Case Presentation





Download

IW4 User Manual
