X6max
Designed with a lotus-style coaxial structure, the X6max delivers exceptional near-field performance and precise phase imaging—offering crystal-clear sound even within 1–2 meters. Featuring a titanium dome diaphragm for rich, detailed highs and a dynamic range up to four times greater than standard speakers, it effortlessly reaches 110 dB output. With an ultra-slim 11 cm installation depth, the X6 Max is perfectly suited for both Dolby Atmos main channels and surround applications, bringing pow

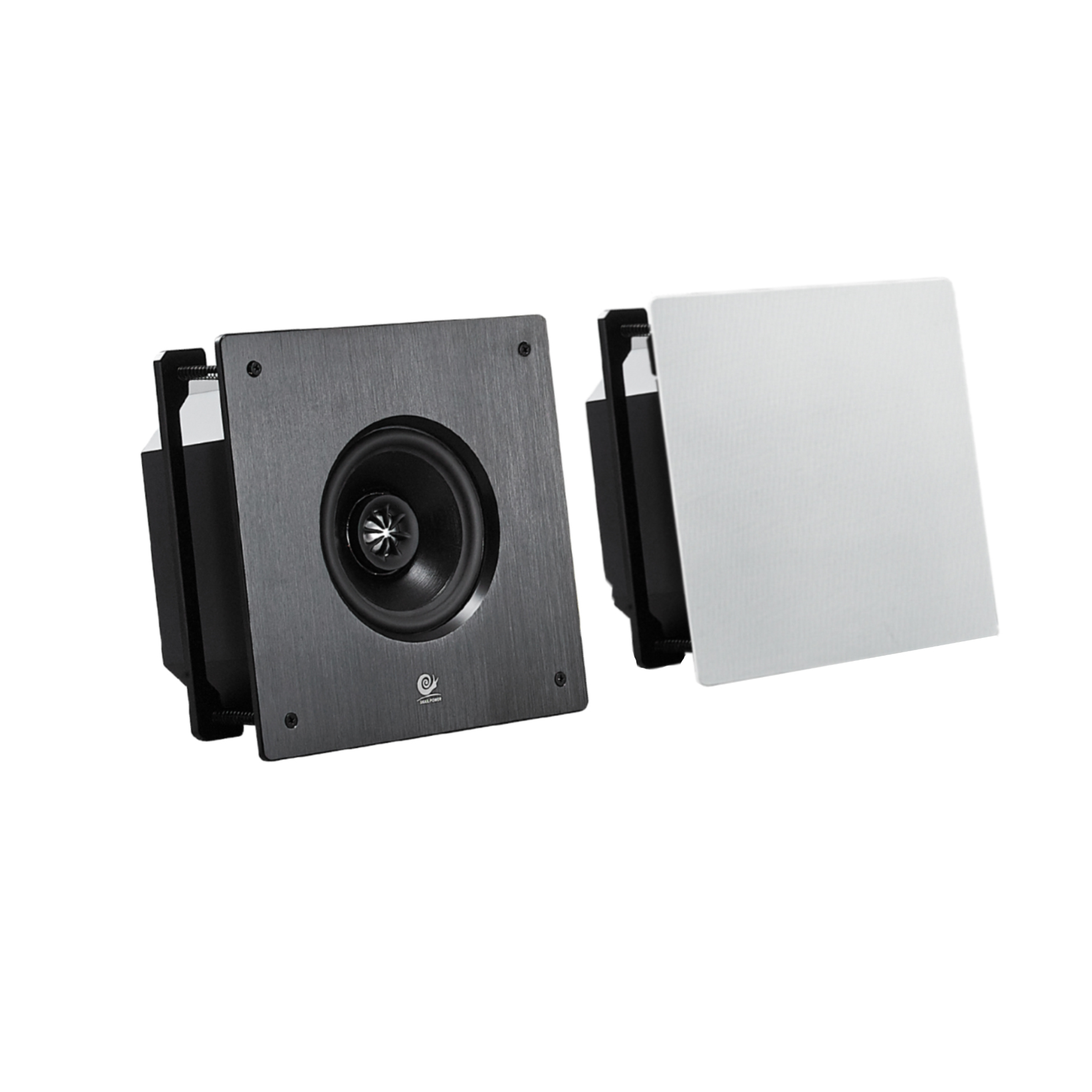

X6max Professional In-Wall Speaker
Designed with a lotus-style coaxial structure, the X6 Max delivers exceptional near-field performance and precise phase imaging—offering crystal-clear sound even within 1–2 meters. Featuring a titanium dome diaphragm for rich, detailed highs and a dynamic range up to four times greater than standard speakers, it effortlessly reaches 110 dB output. With an ultra-slim 11 cm installation depth, the X6 Max is perfectly suited for both Dolby Atmos main channels and surround applications, bringing powerful, immersive sound to any custom home cinema.
X6max Specifications
| Drive Unit: | 1×16"LF Driver,1×1"HF compression driver |
| Frequency Response Range: | 70Hz-22KHz(±3dB) |
| Power Max: | 400W |
| Sensitivity: | 91dB/8W/ |
| Avg. Max Output: | 115dB |
| Input Impedance: | 8Ω |
| Net Weight: | 4KG(single) |
| Product dimensions: | 233*233*115mm |
| Hole dimensions: | 208*208mm,Depth>110mm |
