X6
The X6 features a professional compression horn tweeter, finely tuned from 110 dB to an average of 90 dB, delivering 4–6× the dynamic power of standard consumer speakers. Its titanium diaphragm produces luxurious, detailed highs, while Snail’s horn technology ensures precise control and powerful output. Achieving up to 110 dB in an ultra-slim 13 cm design, the X6 is ideal for Dolby Atmos ceiling channels

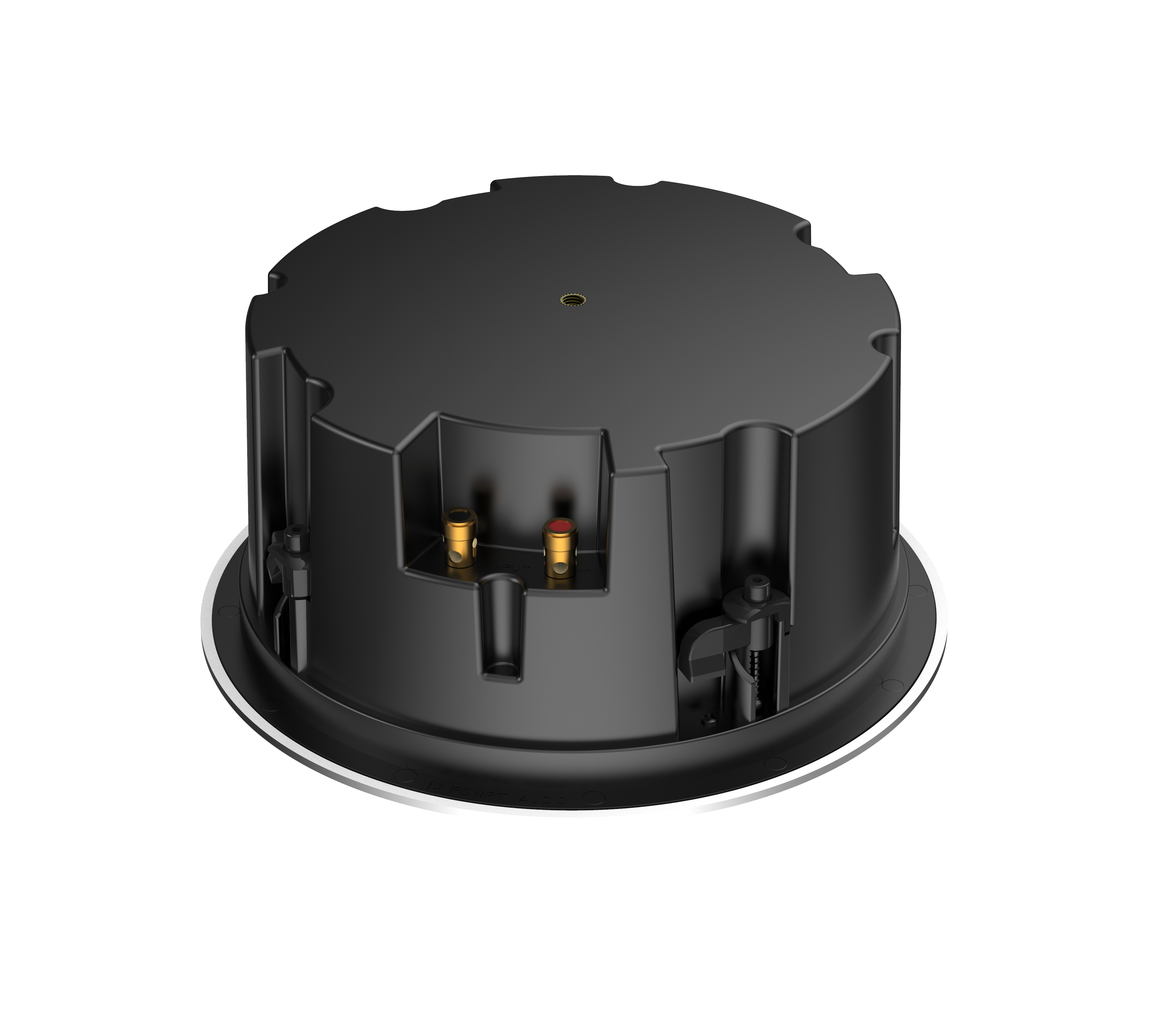

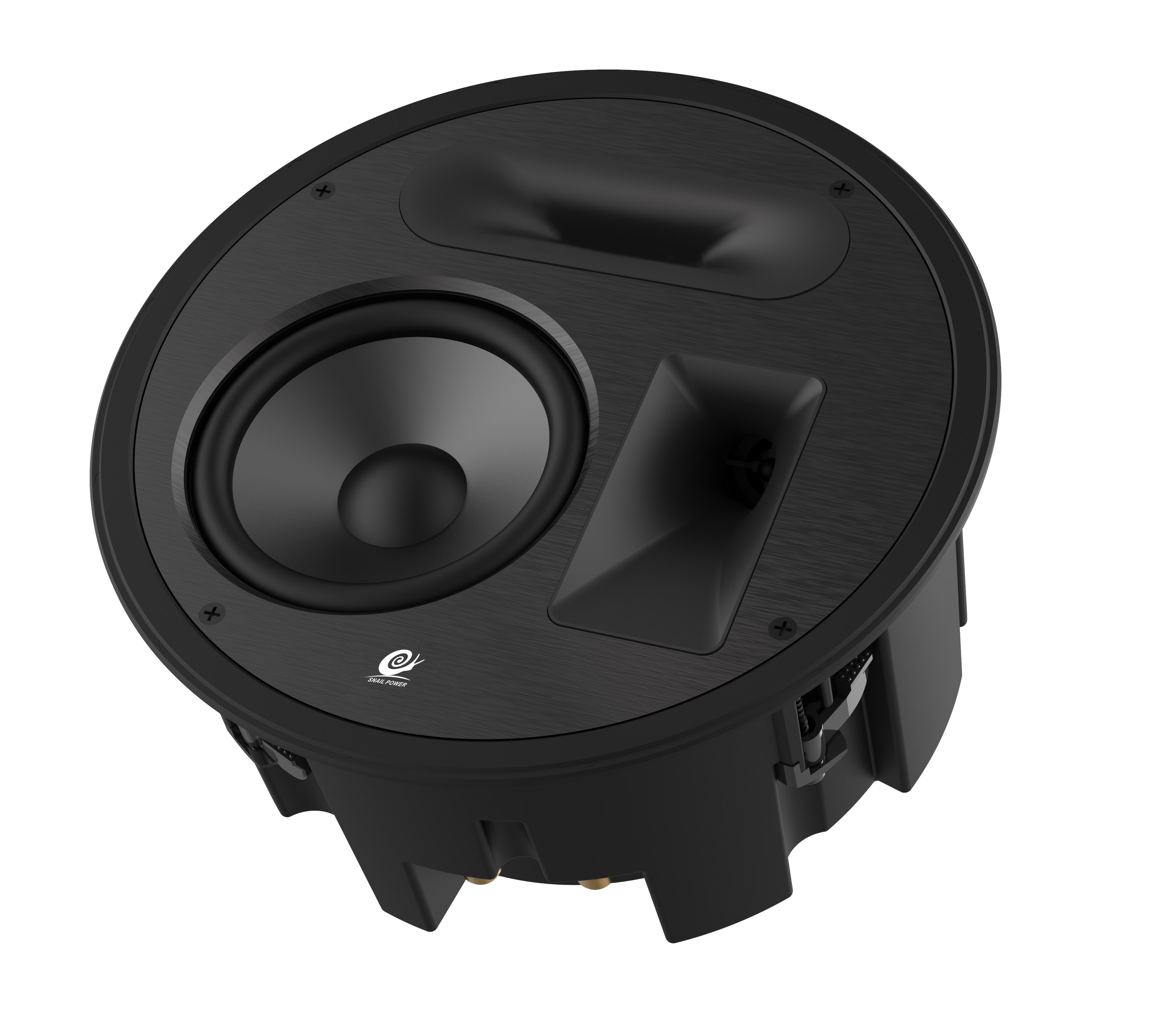

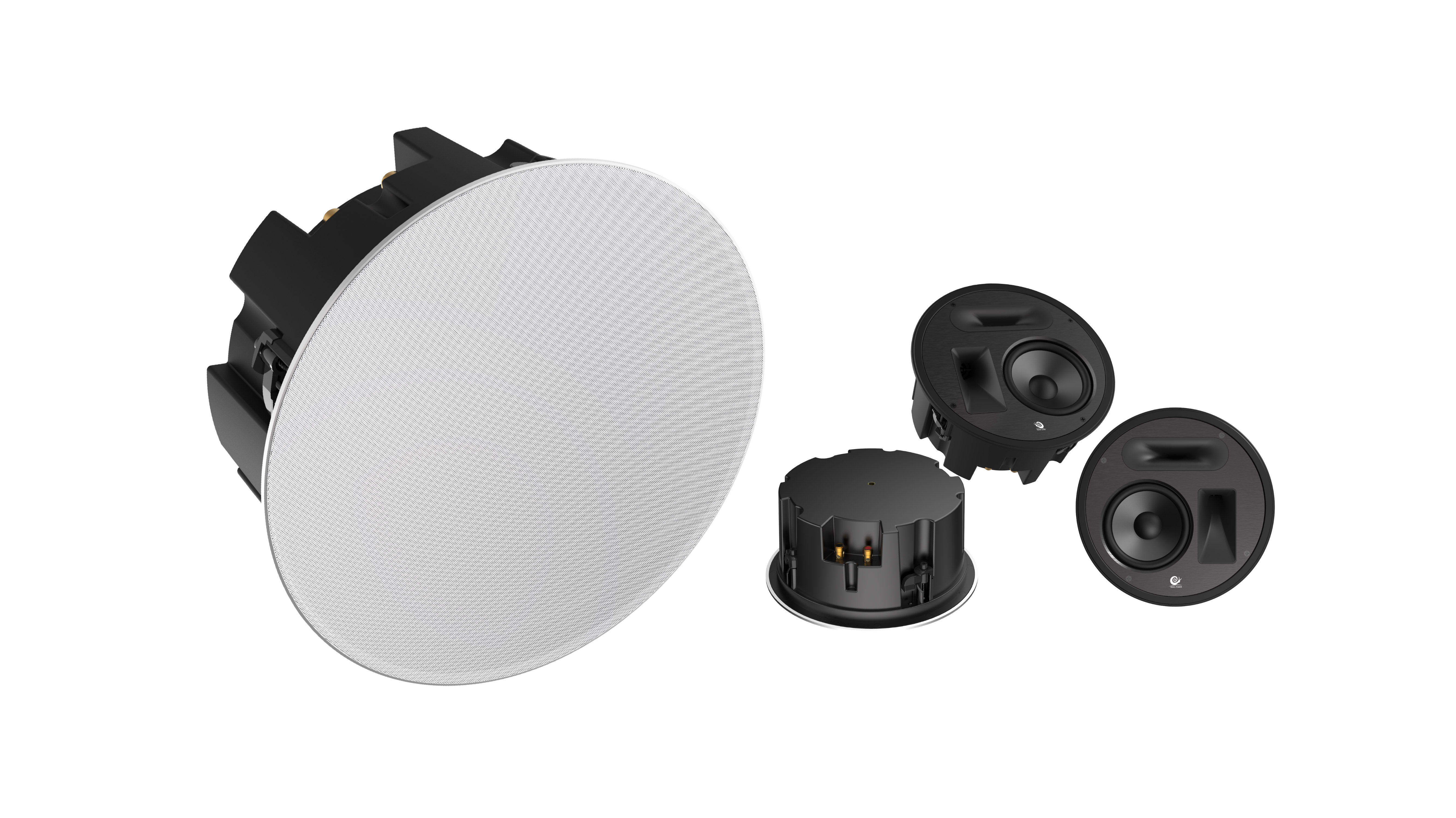

X6 Professional In-Ceiling Speaker
The X6 features a professional compression horn tweeter, finely tuned from 110 dB to an average of 90 dB, delivering 4–6× the dynamic power of standard consumer speakers. Its titanium diaphragm produces luxurious, detailed highs, while Snail’s horn technology ensures precise control and powerful output. Achieving up to 110 dB in an ultra-slim 13 cm design, the X6 is ideal for Dolby Atmos ceiling channels, creating a truly immersive 3D sound experience for custom home theaters.
X6 Specifications
Driver: |
18" Cerametallic Woofer + 11" Titanium dome compression driver mated to 110°H×90°V Tractrix Horn |
Frequency Response: |
40Hz - 20KHz (+/- 3dB) |
Power Handling(Cont/Peak): |
150W/600W |
Sensitivity: |
91dB/W/m 2 frequency division |
Avg. Max Output @1m: |
116dB |
Impedance: |
8 Ohms |
Enclosure Type: |
Patent inverted box bass, horn compression technology |
Dimensions: |
20.7" (526mm)H×11.4" (290mm)W×4.0" (103mm)D |
Hole Dimensions: |
19.32" (491mm)H×10.04" (255mm)W |
Mounting Depth: |
3.9" (99mm) |
