X8
The X8 combines an aluminum low-frequency driver with a compression horn tweeter, precisely tuned from 110 dB to a balanced 91 dB sound pressure—delivering 4–6× greater dynamic range than typical consumer speakers. Its aluminum woofer ensures low distortion and wide frequency response, while the titanium diaphragm produces detailed, luxurious highs. Crafted with a wooden cabinet and aluminum front panel, the ultra-slim 10 cm design achieves powerful 110 dB dynamics

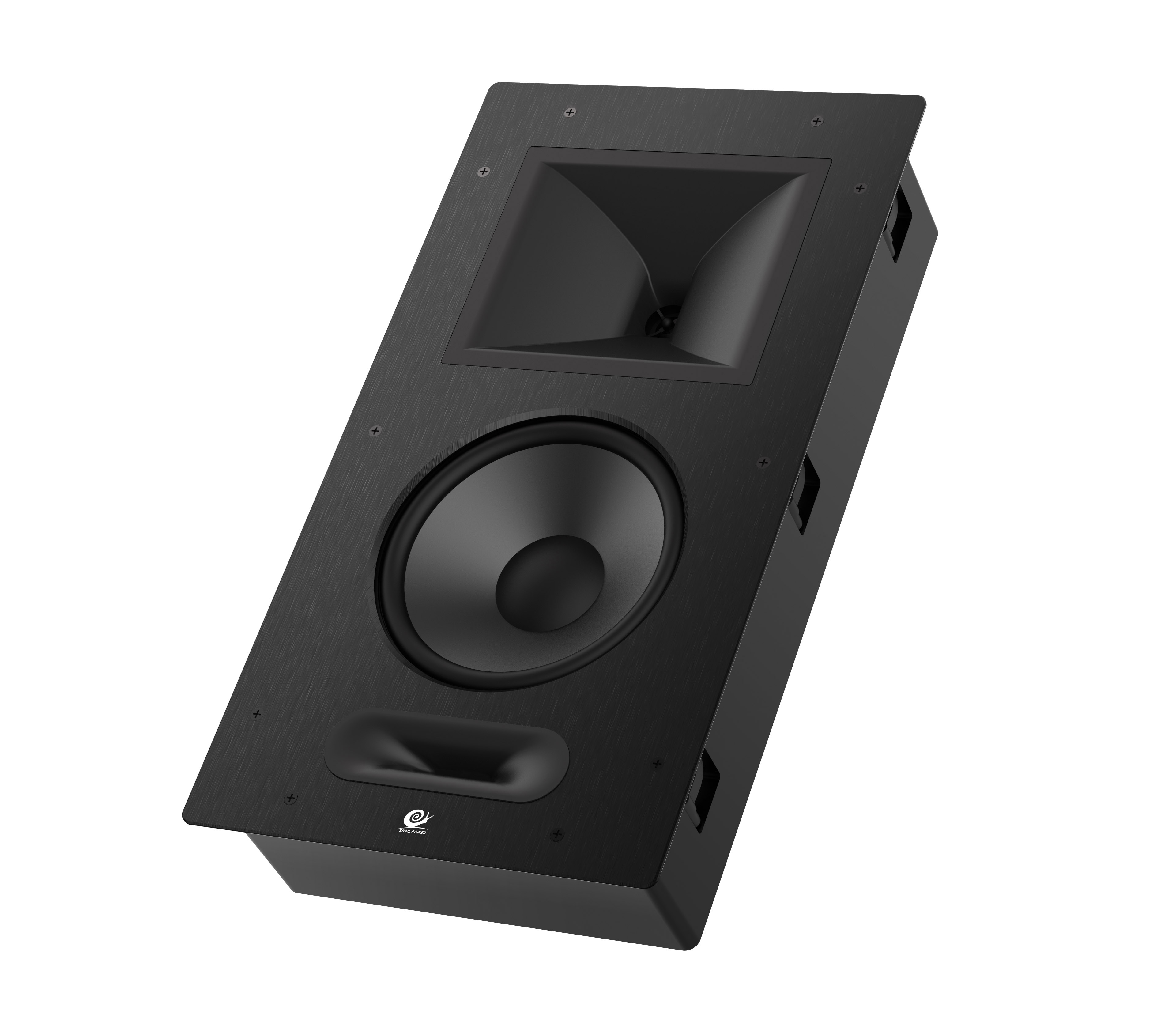

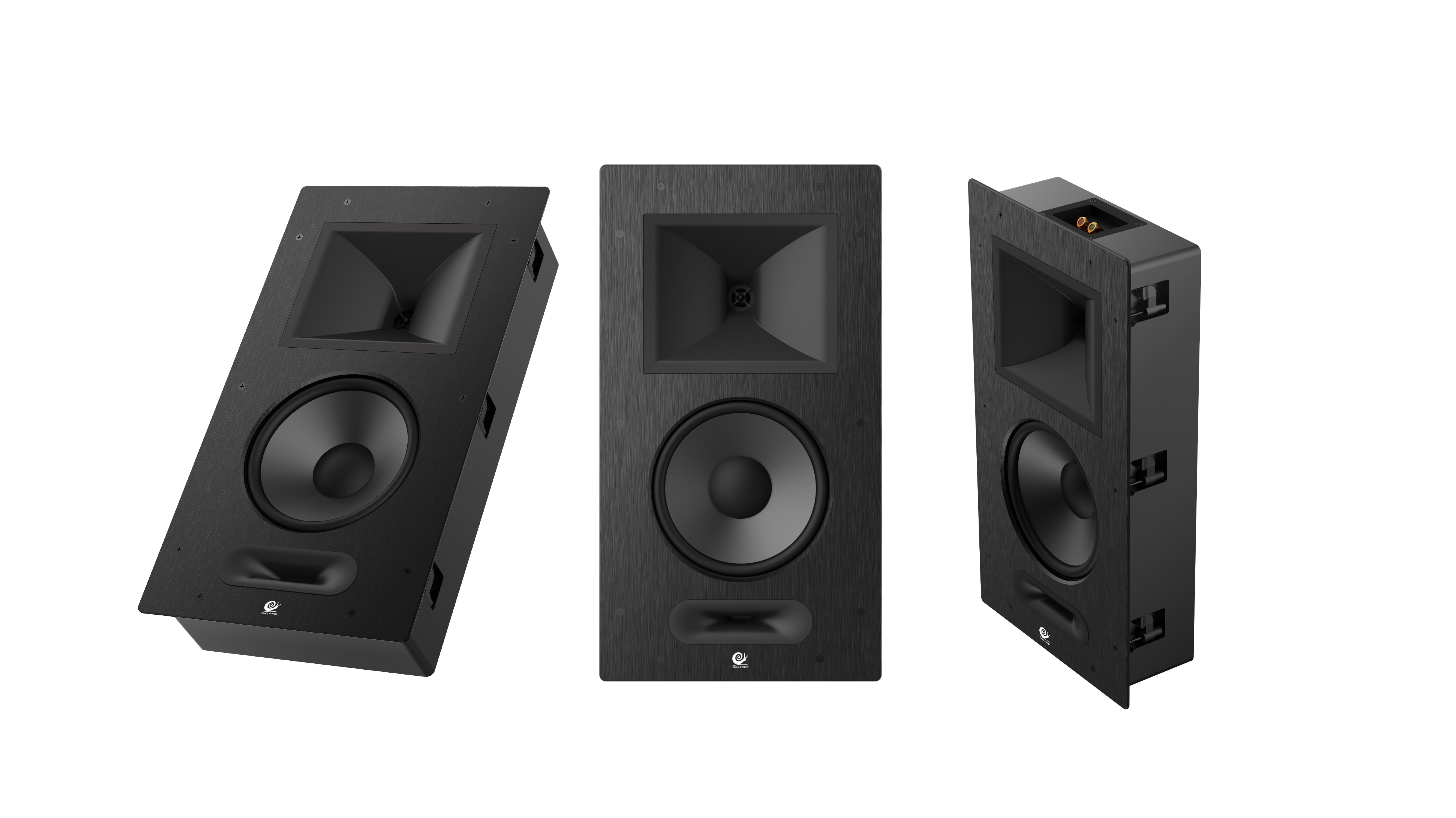

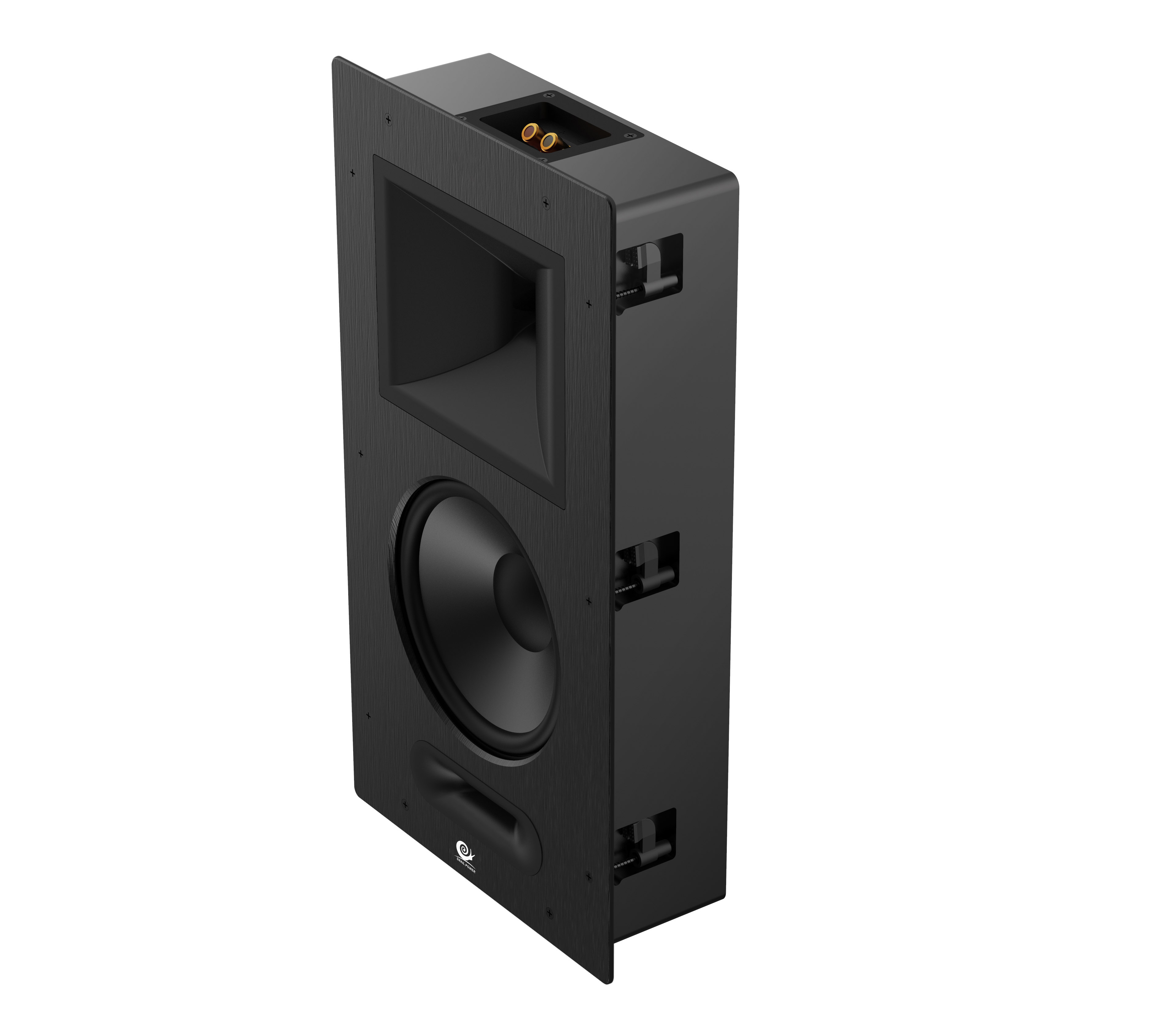

X8 Professional In-wall Horn Speaker Main Speaker
The X8 combines an aluminum low-frequency driver with a compression horn tweeter, precisely tuned from 110 dB to a balanced 91 dB sound pressure—delivering 4–6× greater dynamic range than typical consumer speakers. Its aluminum woofer ensures low distortion and wide frequency response, while the titanium diaphragm produces detailed, luxurious highs. Crafted with a wooden cabinet and aluminum front panel, the ultra-slim 10 cm design achieves powerful 110 dB dynamics, making it perfect for both main and surround speaker applications in modern custom cinemas.
X8 Specifications
Driver: |
18" Cerametallic Woofer + 11" Titanium dome compression driver mated to 110°H×90°V Tractrix Horn |
Frequency Response: |
40Hz - 20KHz (+/- 3dB) |
Power Handling(Cont/Peak): |
150W/600W |
Sensitivity: |
91dB/W/m 2 frequency division |
Avg. Max Output @1m: |
116dB |
Impedance: |
8 Ohms |
Enclosure Type: |
Patent inverted box bass, horn compression technology |
Dimensions: |
20.7" (526mm)H×11.4" (290mm)W×4.0" (103mm)D |
Hole Dimensions: |
19.32" (491mm)H×10.04" (255mm)W |
Mounting Depth: |
3.9" (99mm) |
