Professional Home Theater 7.1.4 System

Snail Power pioneered the living room downlight cinema, cementing its status as an industry benchmark. In the realm of professional custom cinemas, the brand has also maintained unwavering momentum in innovation. Evolving from the IW6 series to the flagship X series, it unveiled its inaugural X135 model in 2023. This year, at the GILE 2025 Lighting Fair, Snail Power amplified its product rollout with the launch of the X8, X6, and X6max models—complemented by the simultaneous debut of its professional-grade DSP power amplifiers, the DP4000 and DP1600. These releases have forged the industry’s first complete ecosystem tailored for custom cinemas.

Include Products

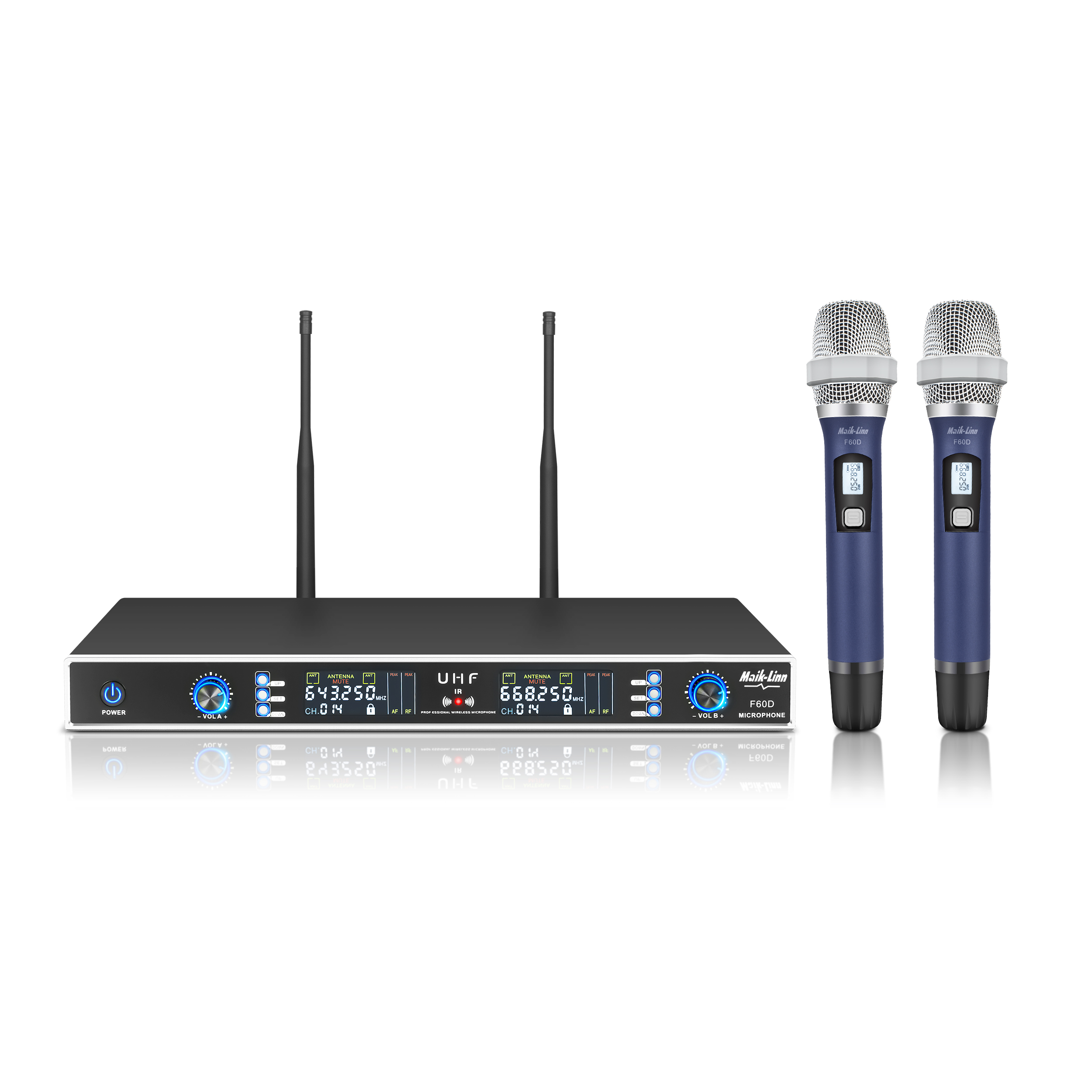

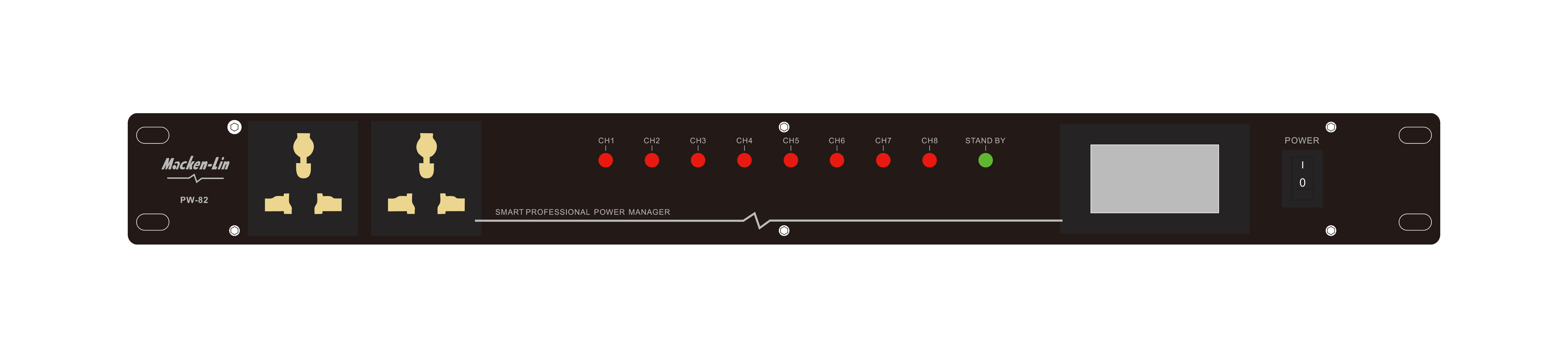

X8*3+X6max*4+X6*4+X118+DP1600+DP4000+DG-1+MU-1+PW-82+F60D

ꁹ Contact Us
ꁹ Download
ꀇ
Home  ꁕ  Products  ꁕ  U Series  ꁕ  X Series 7.1.4 Professional Home Theater

Snail Power X Series Professional Home Theater 7.1.4 System

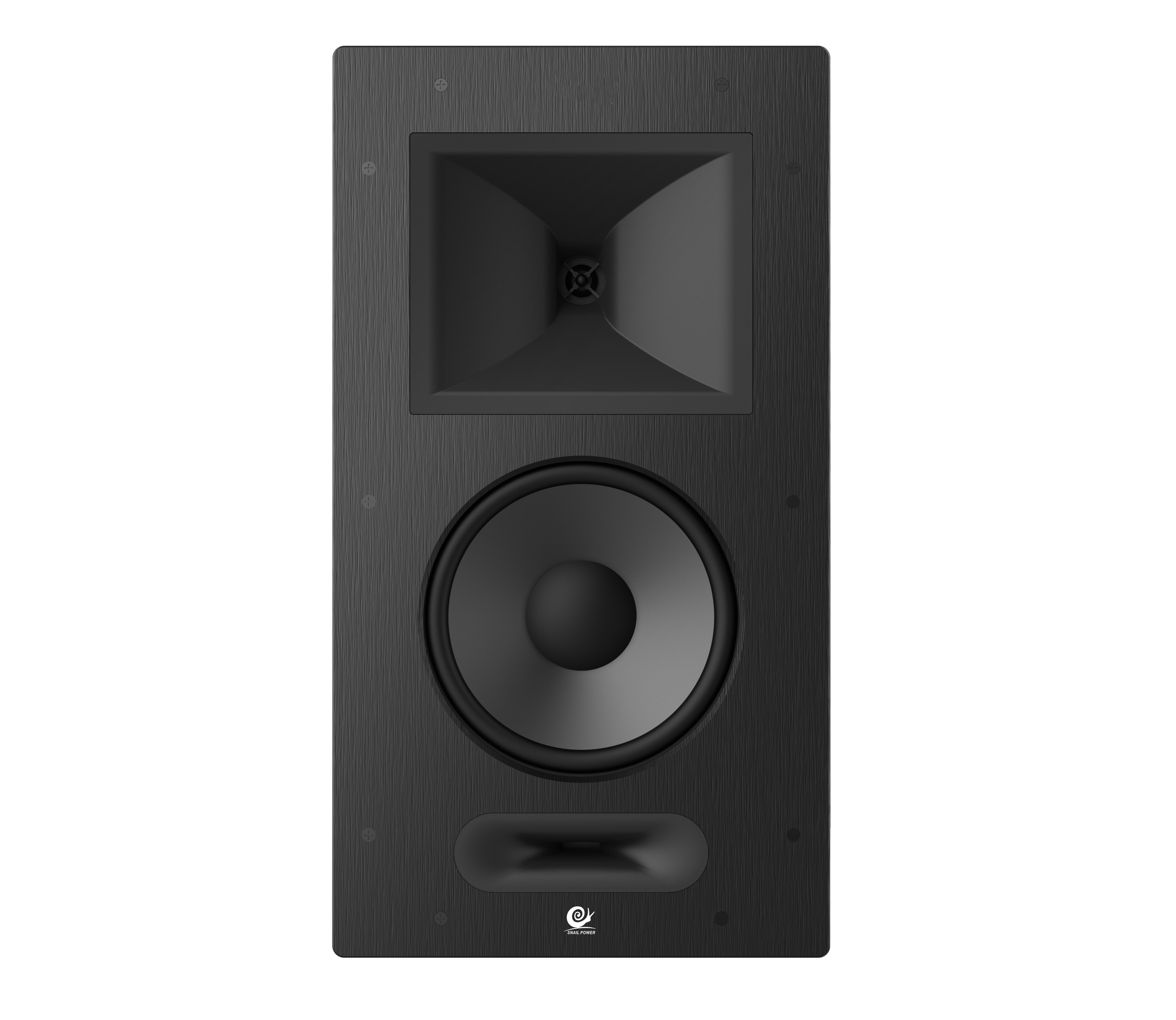

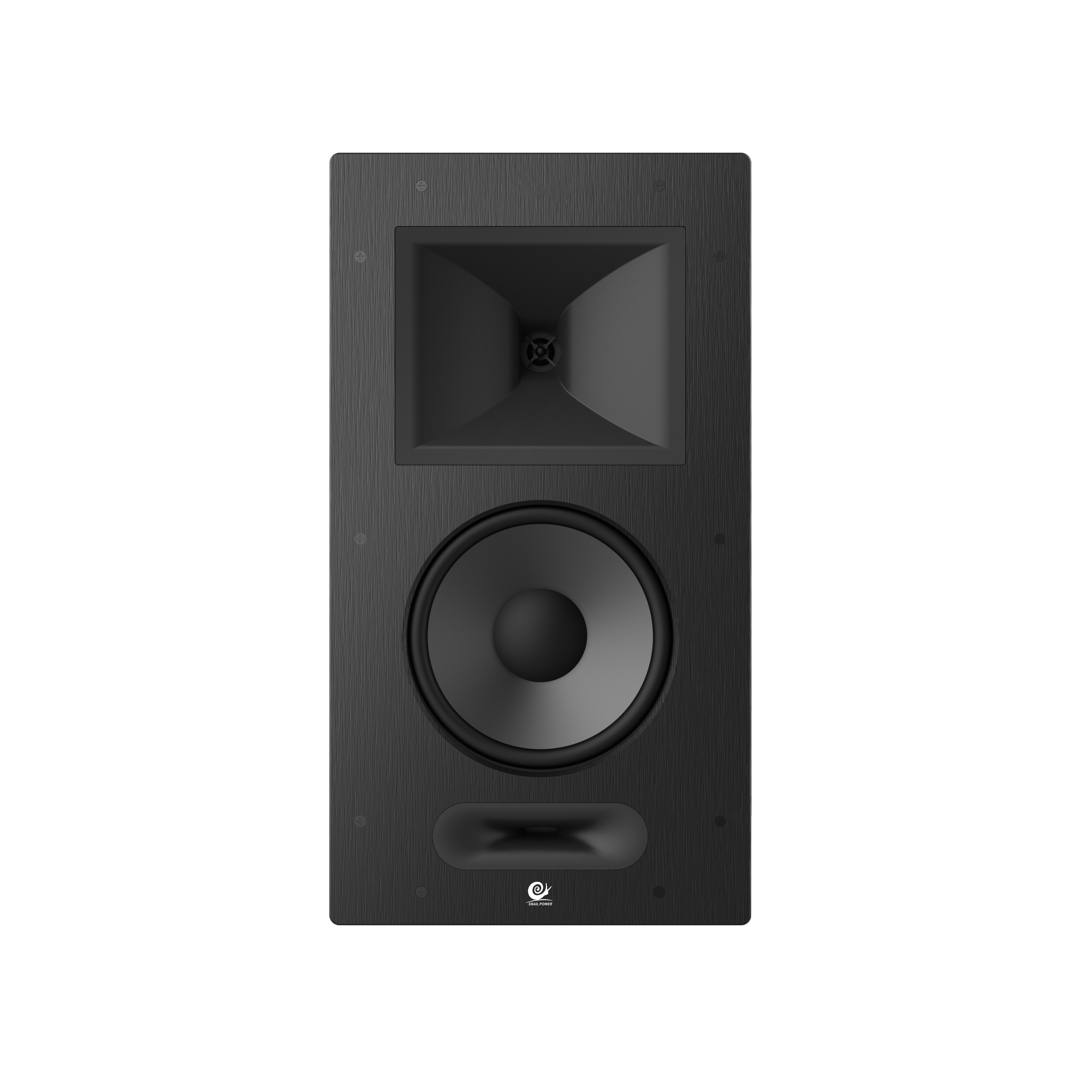

X8 Professional Horn Speaker

The X8 combines an aluminum low-frequency driver with a compression horn tweeter, precisely tuned from 110 dB to a balanced 91 dB sound pressure—delivering 4–6× greater dynamic range than typical consumer speakers. Its aluminum woofer ensures low distortion and wide frequency response, while the titanium diaphragm produces detailed, luxurious highs. Crafted with a wooden cabinet and aluminum front panel, the ultra-slim 10 cm design achieves powerful 110 dB dynamics, making it perfect for both main and surround speaker applications in modern custom cinemas.



X8 Specifications

Driver:

18" Cerametallic Woofer + 11" Titanium dome compression driver mated to 110°H×90°V Tractrix Horn

Frequency Response:

40Hz - 20KHz (+/- 3dB)

Power Handling(Cont/Peak):

150W/600W

Sensitivity:

91dB/W/m 2 frequency division

Avg. Max Output @1m:

116dB

Impedance:

8 Ohms

Enclosure Type:

Patent inverted box bass, horn compression technology

Dimensions:

20.7" (526mm)H×11.4" (290mm)W×4.0" (103mm)D

Hole Dimensions:

19.32" (491mm)H×10.04" (255mm)W

Mounting Depth:

3.9" (99mm)

  ↵

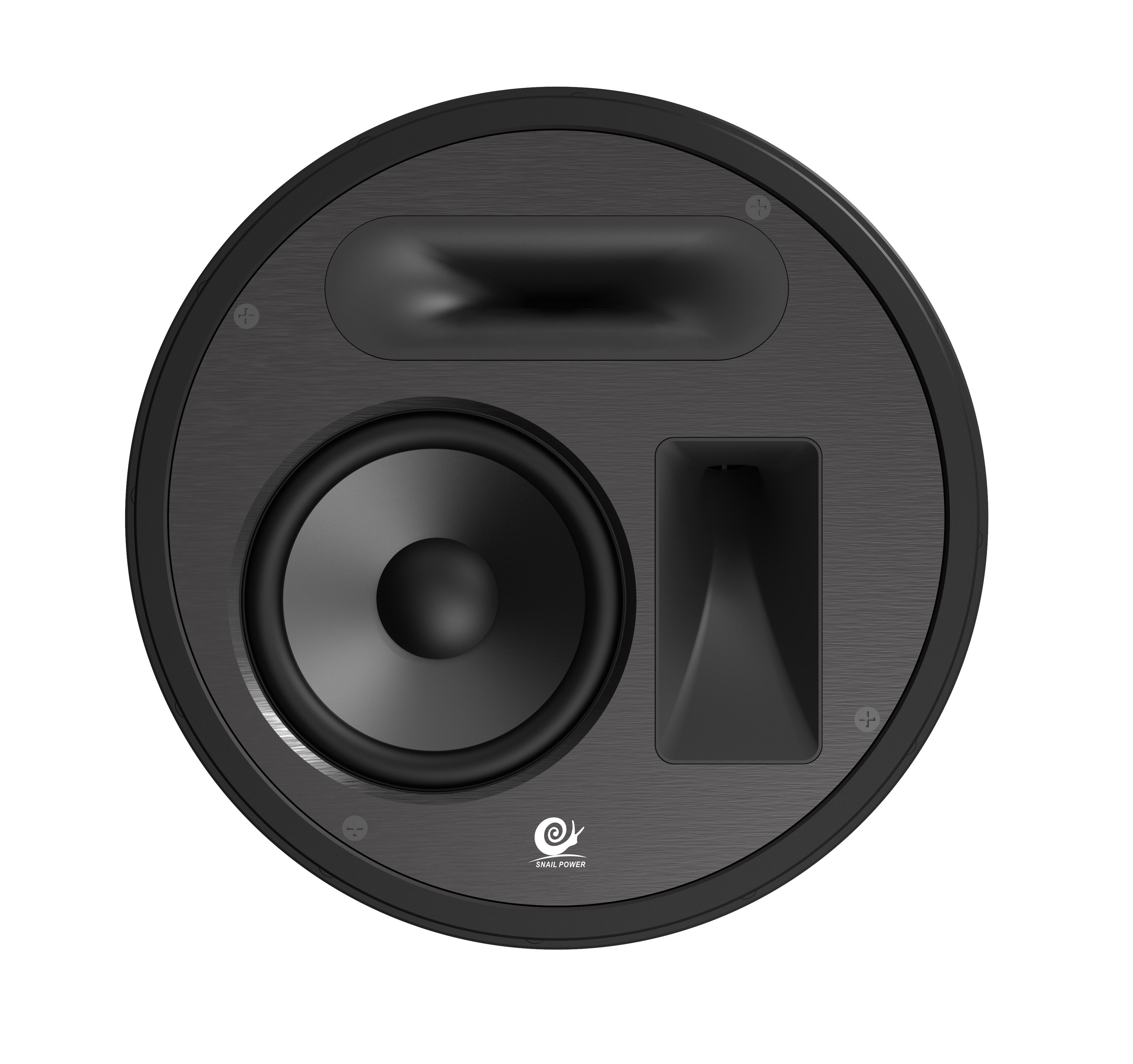

X6 Professional In-Ceiling Speaker



The X6 features a professional compression horn tweeter, finely tuned from 110 dB to an average of 90 dB, delivering 4–6× the dynamic power of standard consumer speakers. Its titanium diaphragm produces luxurious, detailed highs, while Snail’s horn technology ensures precise control and powerful output. Achieving up to 110 dB in an ultra-slim 13 cm design, the X6 is ideal for Dolby Atmos ceiling channels, creating a truly immersive 3D sound experience for custom home theaters.



X6 Specifications

Driver:

1×5.75" Cerametallic Woofer + 1×1" Titanium dome compression driver mated to 65°H×50°V Horn, Asymmetric directional projection.

Frequency Response:

60Hz~20KHz (+/-3dB)

Power Handling(Cont/Peak):

100W/400W

Sensitivity:

90dB/W/m, 2 frequency division

Avg. Max Output @1m:

114dB

Impedance:

8 Ohms

Enclosure Type:

Patent bass enhancement technology, horn compression technology

Dimensions:

Ø11"(280mm)×5.2"(132mm)H

Hole Dimensions:

Ø9.9"(252mm)

Mounting Depth:

5"(127mm)
Net weight 8.8 lbs. (4kg)
Finish Aluminum panel+White paintable grill





Snail Power X Series Professional Home Theater

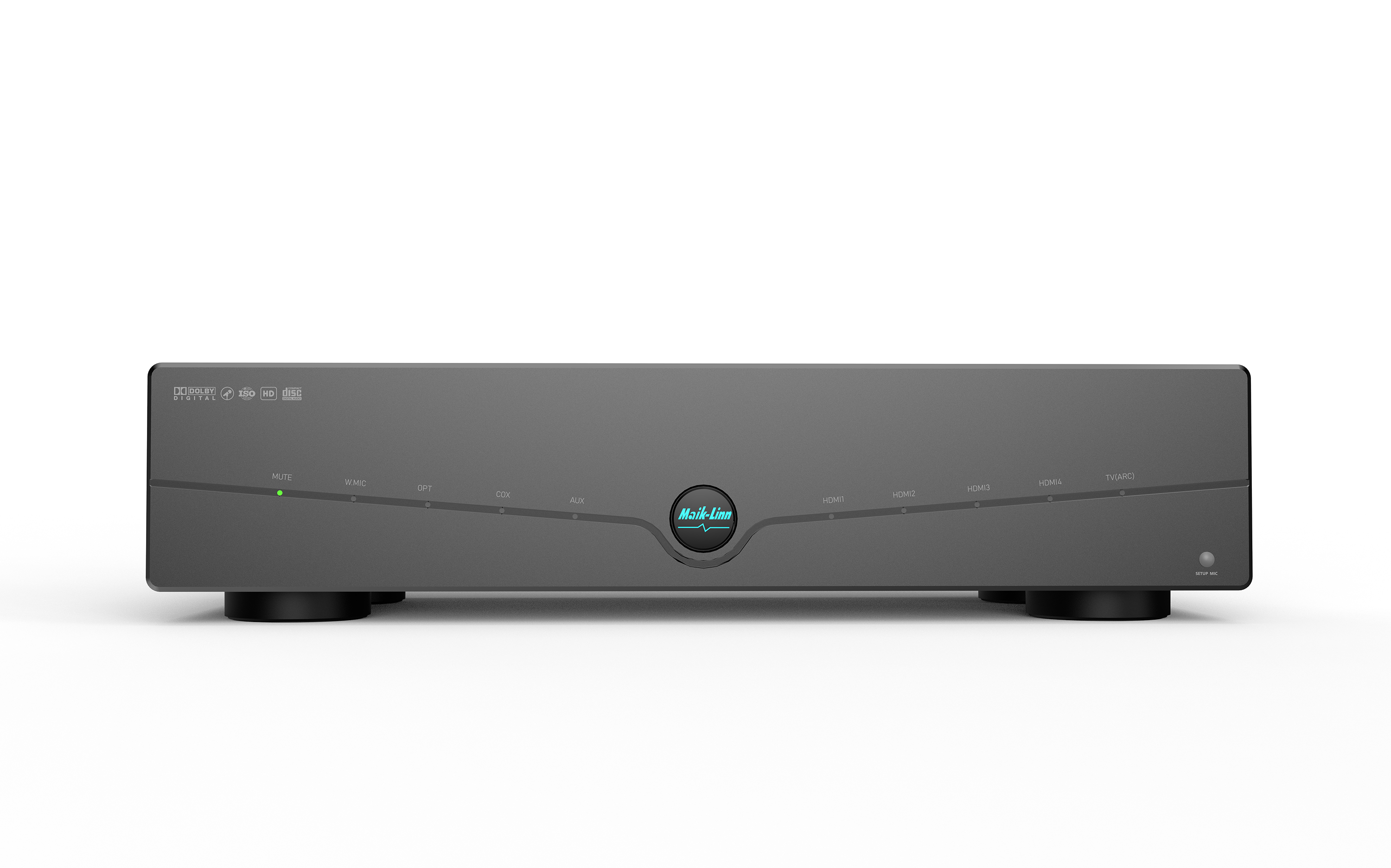

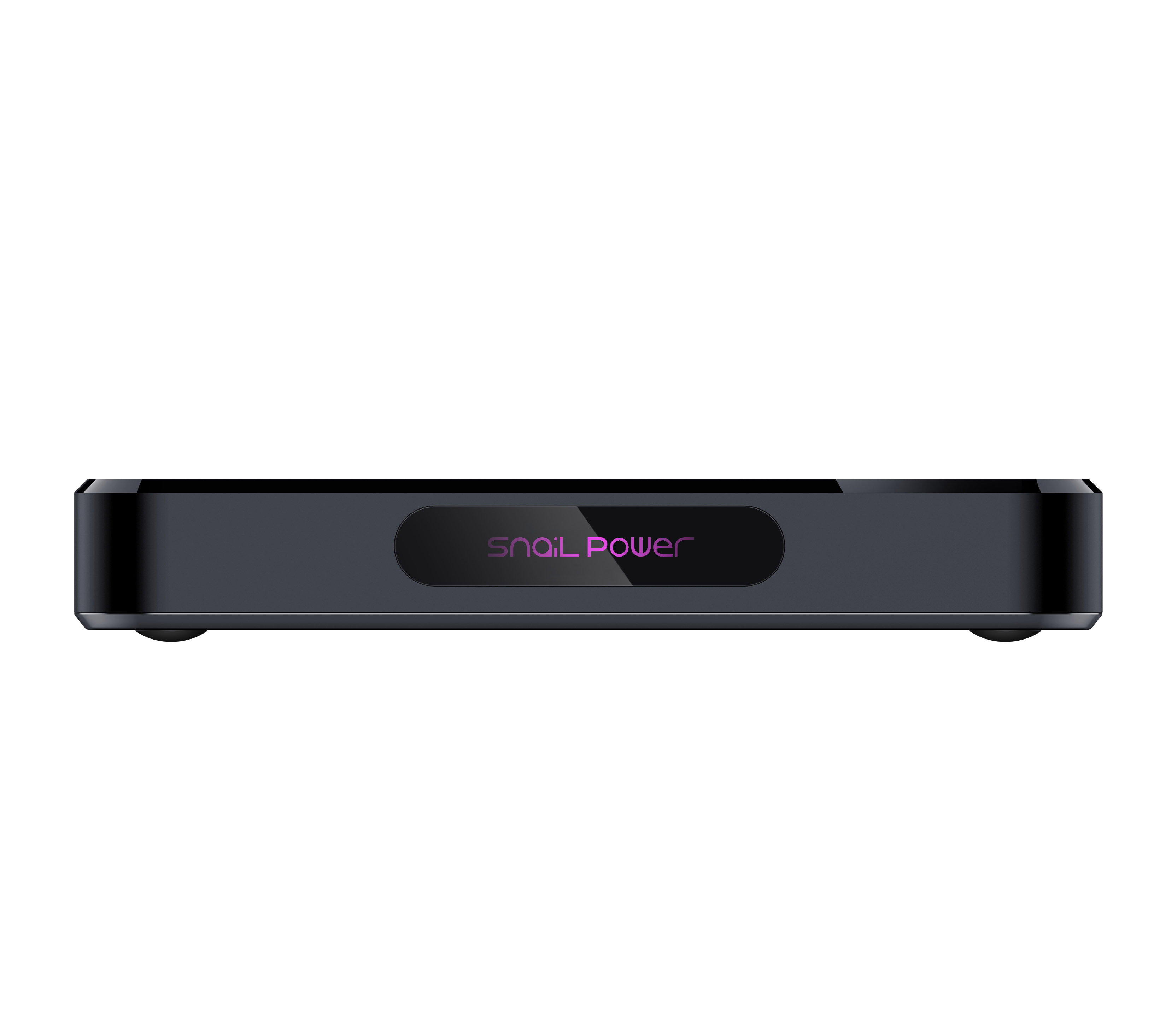

Snail Power Professional X Series — Redefining the Art of Home Cinema The Snail Power Professional Series X Custom Home Theater represents the pinnacle of innovation and acoustic excellence. Featuring X8 professional horn in-wall main speakers, X6 professional horn in-ceiling speakers, X6 Max near-field high-power coaxial speakers, and ultra-high-power subwoofers, it delivers breathtaking sound with precision and depth. Powered by Snail’s latest DSP amplifiers (DP4000, DP1600), the MU-1 8K Ultra HD amplifier, and the DG-1 preamplifier with Dolby Atmos 11.2 and DTS:X certification, the system creates a truly immersive, theater-grade audio environment — seamlessly blending professional cinema performance with the comfort and elegance of a modern living space. Experience the perfect harmony of power, clarity, and design — where every movie and every song comes alive with Snail Power.

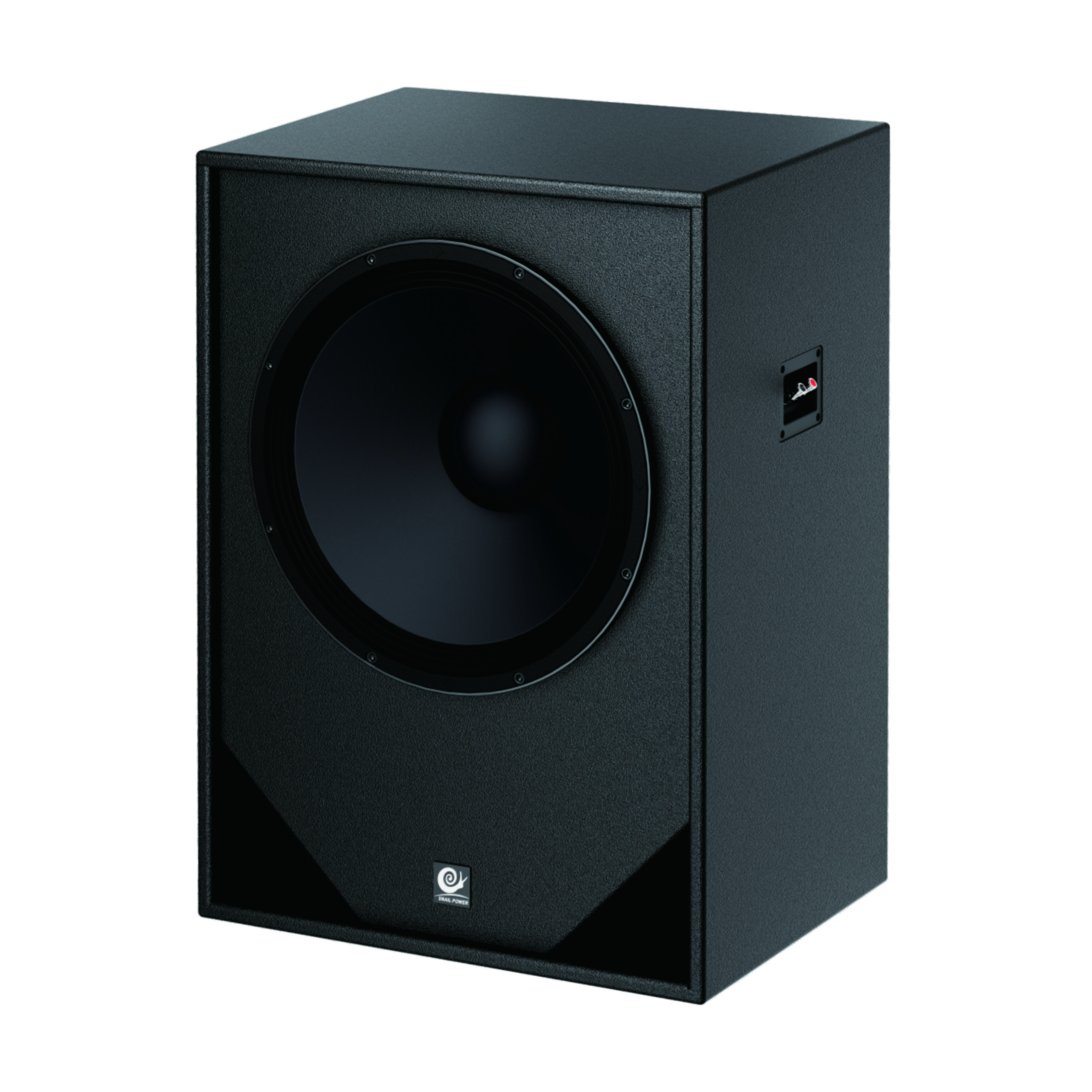

X118 Subwoofer — The Soul of Cinema



Powered by Snail’s custom-built 18-inch high-power driver and professional-grade amplifier, this subwoofer delivers deep, cinematic bass that defines every performance. Driven by the DP4000 DSP engine, it achieves up to 120 dB within a 25–120 Hz range, with multi-layer digital signal control ensuring perfect movie dynamics and musical precision. Despite its powerful output, the design remains sleek at only 40 cm in depth—making it ideal for large Dolby cinema applications.







X118 2000W Subwoofer Specifications

System type: 1-Unit Direct Ultra Low Frequency
Power Handling: 1000W
Maximum Power: 2000W
Impedance: 8Ω
Recommended Amplifier Output Power: 1500W - 2000W@8 OHMS
Sensitivity (1W@1m): 98dB
Nominal MAX SPL (Pmax@1m): 128dB@1000W (131dB@2000W)
Frequency Range: 30Hz - 300Hz
Directivity (-6dB): 360°H×360°V
Transducer configuration: Ferrite LF driver 18" (100mm voice coil)×1
Crossover Mode: Passive
Connector: Red and black terminal
Cabinet Material: 18mm(0.7") Birch Plywood
Cabinet Dimension: W580mmD400mmH800mm
Color: The default is black, can be customized other colors according to the requirement
Reference application field: Suitable for multi-functional halls, auditorium, lecture hall, conference room, KTV, bar, fixed installation



X6max Professional Coaxial Speaker



Designed with a lotus-style coaxial structure, the X6 Max delivers exceptional near-field performance and precise phase imaging—offering crystal-clear sound even within 1–2 meters. Featuring a titanium dome diaphragm for rich, detailed highs and a dynamic range up to four times greater than standard speakers, it effortlessly reaches 110 dB output. With an ultra-slim 11 cm installation depth, the X6 Max is perfectly suited for both Dolby Atmos main channels and surround applications, bringing powerful, immersive sound to any custom home cinema.



X6max Specifications

Drive Unit: 1×16"LF Driver,1×1"HF compression driver
Frequency Response Range: 70Hz-22KHz(±3dB)
Power Max: 400W
Sensitivity: 91dB/8W/
Avg. Max Output: 115dB
Input Impedance: 8Ω
Net Weight: 4KG(single)
Product dimensions: 233*233*115mm
Hole dimensions: 208*208mm,Depth>110mm



Include Products
